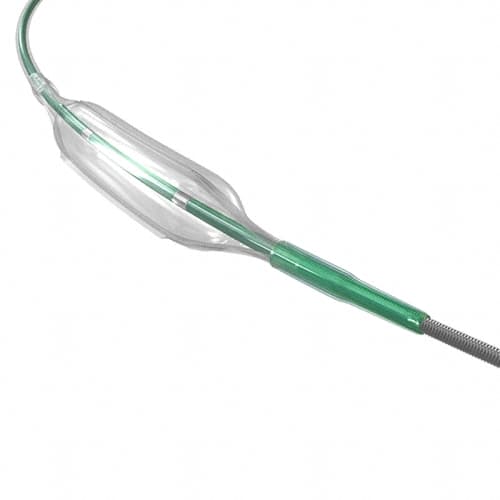

De scorende ballonkatheter NSE Alpha is ontworpen voor nauwkeurige dilatatie bij een groot aantal soorten laesies. De NSE Alpha heeft drie scoringselementen voor een gecontroleerde scoring van de vaatwand en is bedoeld om slippen tijdens het opblazen te verminderen.
Anti-slip elementen met een driehoekige doorsnede
- De drie scoringselementen met een driehoekige doorsnede zijn ingebed in de ballonplooien om een klein kruisingsprofiel mogelijk te maken.
- De verandering van ballonpositie (slippage) tijdens het opblazen kan worden uitgesloten dankzij de scoringselementen.
- De markeringselementen zijn alleen aan de proximale en distale balloneinden bevestigd. Daarom kan een hoge flexibiliteit worden gegarandeerd. De hoge flexibiliteit in combinatie met een laag ballonprofiel resulteert in een superieure traceerbaarheid, zelfs in kronkelige anatomieën en moeilijk bereikbare laesies.
Effectieve eliminatie van slip tijdens inflatie
- De driehoekige doorsnede van de scoringselementen zorgt voor een hogere en meer gerichte drukoverdracht naar de vaatwand, waardoor de ballon tijdens het opblazen minder snel afglijdt.
Scorende ballonprestaties
- De scoringselementen scoren de plaque rondom door de elasticiteit van de vaatwand te behouden zonder negatieve bijwerkingen.
- NSE Alpha biedt scorende ballonprestaties in verkalkte laesies
